Check If Running in WebSpatial Mode

The previous section explained that WebSpatial SDK can automatically build two sets of site assets:

  • One set targets desktop/mobile platforms and regular browsers and does not include the WebSpatial SDK.
  • The other set targets the WebSpatial App Shell and does include the WebSpatial SDK.

Your own application code may also contain logic that is specific to WebSpatial apps, such as:

  • Spatial UI that differs greatly from a normal web UI
  • 3D content unique to WebSpatial apps

Example project: https://github.com/webspatial/sample-techshop

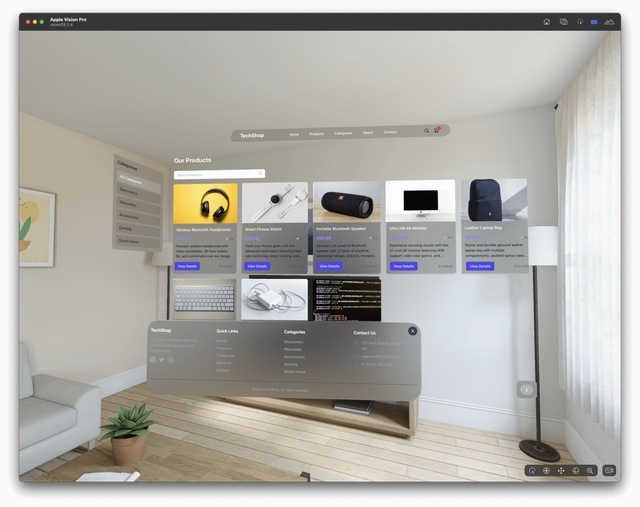

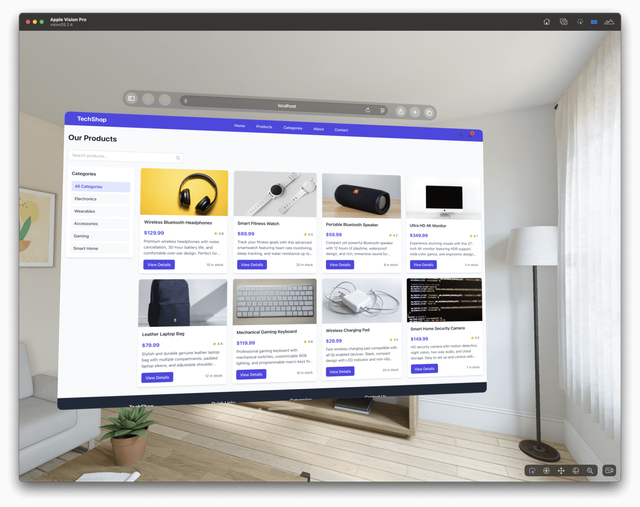

The left image shows the non-spatial UI; the right image shows the spatial UI.

This code shouldn't run or even be included in the build for the desktop/mobile platform and regular browsers.

To achieve this optimization, confidently leverage spatial features and innovate freely, you need a reliable way to know whether the code is running in a WebSpatial app or in a regular website.

Recommended JS solution​

If your web project includes a Node.js-based server, you first need to decide whether you're using a single-web-server mode or multi-web-server mode.

In multi-web-server mode, the server for WebSpatial sets the $XR_ENV environment variable when it starts, so your server code can just check that variable to know if it's running in the WebSpatial-specific server.

If you're using a single-web-server mode, you'll need to check the User-Agent string in web requests at runtime to identify whether the request is coming from a regular browser or the WebSpatial App Shell.

WebSpatial-specific UA string​

For Packaged WebSpatial Apps on visionOS generated by WebSpatial Builder, the UA string is as follows:

Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7; wv)
AppleWebKit/605.1.15 (KHTML, like Gecko)
WebSpatial/0.1.17

For third-party browsers that support WebSpatial apps on visionOS (with built-in WebSpatial App Shell, currently in development), the UA string is as follows:

Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7)
AppleWebKit/605.1.15 (KHTML, like Gecko)
WebSpatial/0.1.17 Safari/605.1.15

For client-side JS​

In client-side JS, you can either check the UA string at runtime to see if the code is running in a WebSpatial app, or inject the $XR_ENV environment variable during the build so it's available as a constant in your client-side code.

info

In Vite you can access it directly with import.meta.env.XR_ENV, no extra config needed.

You can also inject other constants derived from $XR_ENV.

For example, if you use client-side routing, it is best to inject a __XR_ENV_BASE__ constant:

vite.config.js
// https://vite.dev/config/
export default defineConfig({
  define: {
    __XR_ENV_BASE__: process.env.XR_ENV
      ? JSON.stringify(`/webspatial/${process.env.XR_ENV}`)
      : undefined,
  },
  plugins: [
info

The WebSpatial's plugins for web build tools automatically inject __XR_ENV_BASE__, so you can skip the manual config above.

See the usage example in the Quick Example.

<Router basename={__XR_ENV_BASE__}>
 <button
   onClick={() => {
     window.open(`${__XR_ENV_BASE__}/second-page`, "secondScene");
   }}>

Recommended CSS solution​

A future standardizable approach​

warning

This API is not yet supported by WebSpatial SDK.

Use a media query in CSS to match the space color scheme:

On spatial-computing platforms the background environment color is unpredictable and changes with viewpoint and location, so the classic light/dark mode does not apply.

The WebSpatial API introduces a new color scheme called space, which is recognized only in WebSpatial apps. You can use it to target WebSpatial-specific CSS rules.

@media (prefers-color-scheme: space) {

A practical solution for now​

Configure your web build tool so that $XR_ENV is injected into HTML.

E.g. with Vite:

  1. Install the vite-plugin-html plugin.
npm install -D vite-plugin-html
  1. Update vite.config.js.
import { createHtmlPlugin } from "vite-plugin-html";

// https://vite.dev/config/
export default defineConfig({
  plugins: [
    createHtmlPlugin({
      inject: {
        data: {
          XR_ENV: process.env.XR_ENV,
        },
      },
    }),
  1. Modify the HTML template and add a class name that is only present when XR_ENV indicates spatial mode, for example on <html>.
<%- XR_ENV === 'avp' ? `
<html lang="en" class="is-spatial">
  ` : `
  <html lang="en">
    ` %>

In your CSS, wrap any WebSpatial-specific rules under html.is-spatial.

html.is-spatial {
  .my-card {
