Built on the Existing Web Ecosystem

While the mainstream Web ecosystem is ultimately built on HTML/CSS, most Web developers do not work directly with raw HTML/CSS when creating applications. Instead, they rely on UI frameworks or full-featured application frameworks. React is currently the most popular choice - developers use HTML through React's JSX API and component-based architecture, and CSS through APIs such as TailwindCSS, PostCSS, or CSS-in-JS.

To quickly put the WebSpatial API into practice in the real world and meet the urgent needs of the Web ecosystem, the WebSpatial open-source project provides a WebSpatial SDK designed for Web frameworks (for example, React + Vite). This lets Web developers immediately start using the WebSpatial API within their framework's HTML (JSX) and CSS APIs, without waiting for browser engines to ship these capabilities.

In its first release, WebSpatial SDK offers out-of-the-box support for React projects.

info

We hope to work with the community to add support for more UI frameworks in the future. WebSpatial also offers a framework-agnostic Core SDK composed solely of pure JS APIs, so developers can implement the WebSpatial API in other frameworks or import specific spatial features directly from the Core SDK.

You can call WebSpatial's HTML API and DOM API directly inside React JSX:

              <div className="card count-card">
              <div className="card count-card" enable-xr>
                <button onClick={() => setCount(count => count + 1)}>
                  count is {count}
                </button>
                <p>
                <p enable-xr>
                  Edit <code>src/App.tsx</code> and save to test HMR
                </p>
              </div>

You can also use WebSpatial's CSS API in a React project together with TailwindCSS, PostCSS, Styled Components, and similar solutions:

.count-card {
  --xr-background-material: thick;
  position: relative;

  p {
    --xr-background-material: transparent;
    position: absolute;
    bottom: -10px;
    left: 0;
    right: 0;
    --xr-back: 20;
  }
}

You can use the existing link element and window-related DOM APIs in Web standards together with WebSpatial's new Scene Initialization API - to treat and manage scenes within spatial apps as regular web page windows.

                <p>
-                 <Link to="/second-page">
+                 <Link to="/second-page" target="_blank">
                    Open Second Page with a Link
                  </Link>
                </p>
                <p>
                  <button
                    onClick={() => {
                      initScene("secondScene", prevConfig => {
                        return {
                          ...prevConfig,
                          defaultSize: {
                            width: 500,
                            height: 500,
                          },
                        };
                      });
                      window.open(
                        `${__XR_ENV_BASE__}/second-page`,
                        "secondScene",
                      );
                    }}>
                    Open Second Page with a Button
                  </button>
                </p>

You can manage app-level configurations such as the WebSpatial app's start scene, offline packaging, native window UI, and app icons by using the Web App Manifest from the PWA standard.

public/manifest.webmanifest
{
  "name": "TechShop - Premium Tech Products",
  "start_url": "/",
  "scope": "/",
  "display": "minimal-ui",
  "xr_main_scene": {
    "default_size": {
      "width": 1700,
      "height": 1200
    }
  },
  "icons": [
    {
      "src": "/icons/icon-1024x1024.png",
      "sizes": "1024x1024",
      "type": "image/png",
      "purpose": "maskable"

A Web project that integrates the WebSpatial SDK is still a cross-platform website that conforms to Web standards. Your existing development workflow, codebase, and best practices built on the mainstream Web ecosystem stay unchanged, and the UI, interactions, and performance on desktop and mobile platforms remain unaffected. The new WebSpatial APIs fit naturally alongside existing APIs and implementation methods, preserving cross-platform compatibility as well as your established development habits and mental models.

Example - Techshop

Example project: https://github.com/webspatial/sample-techshop

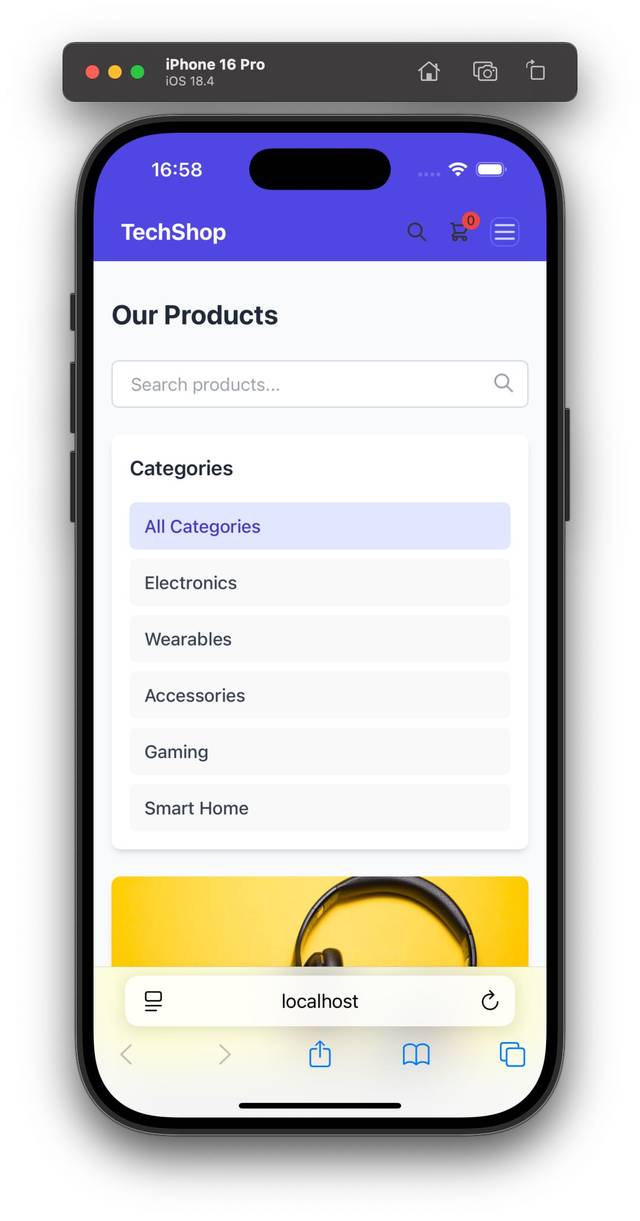

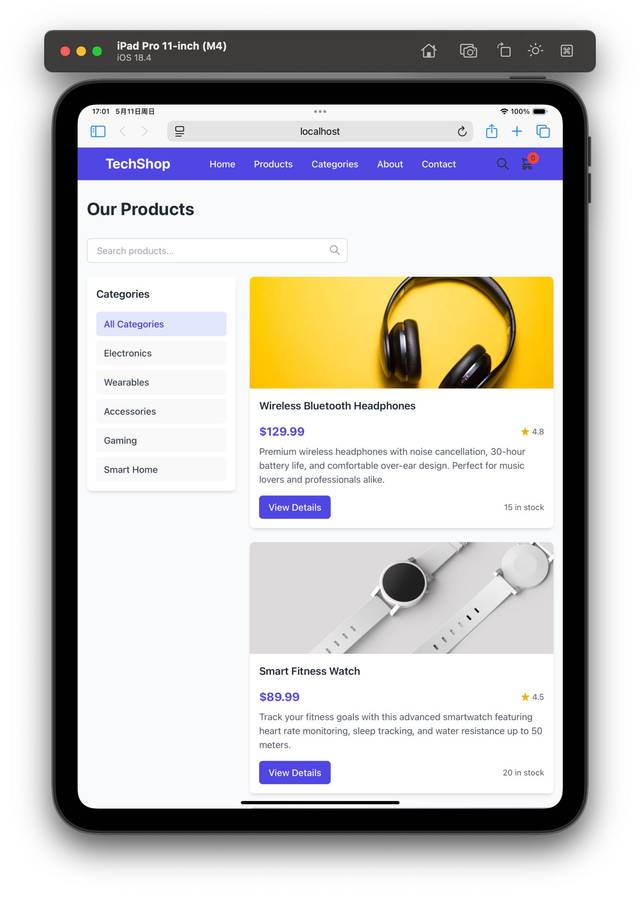

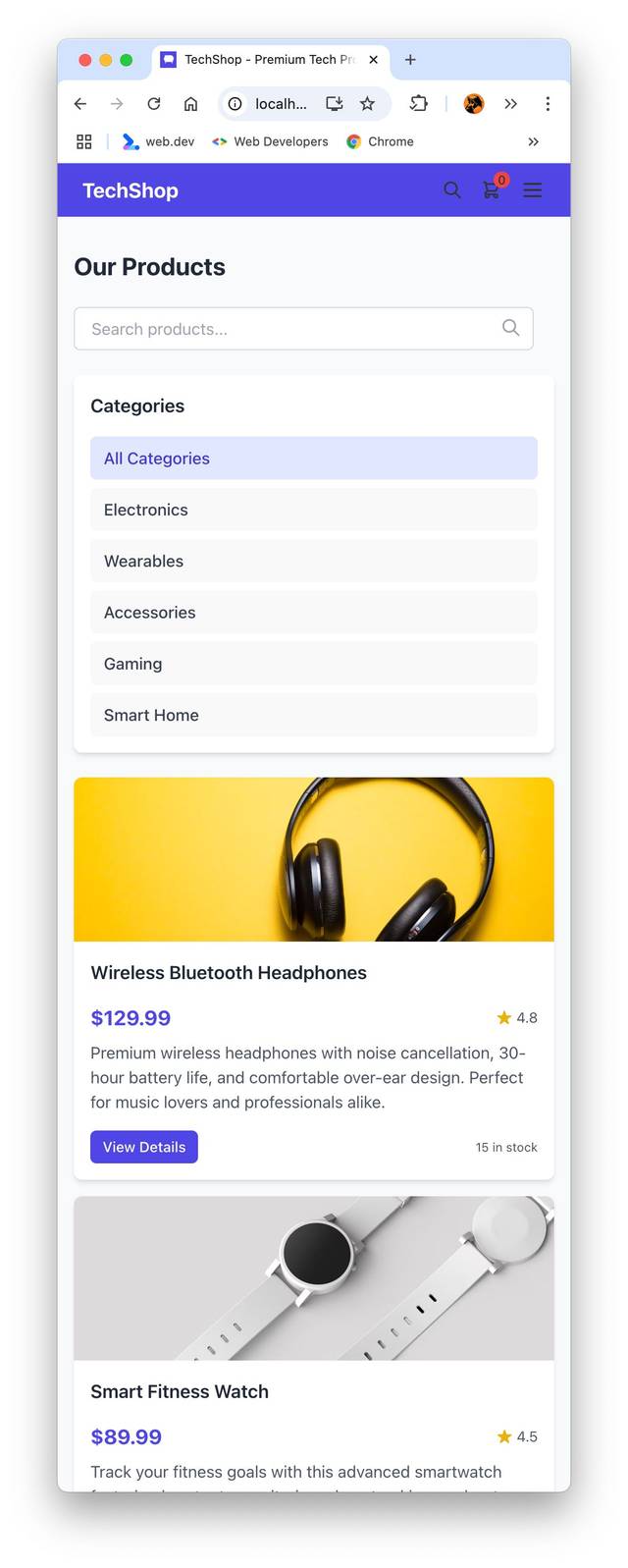

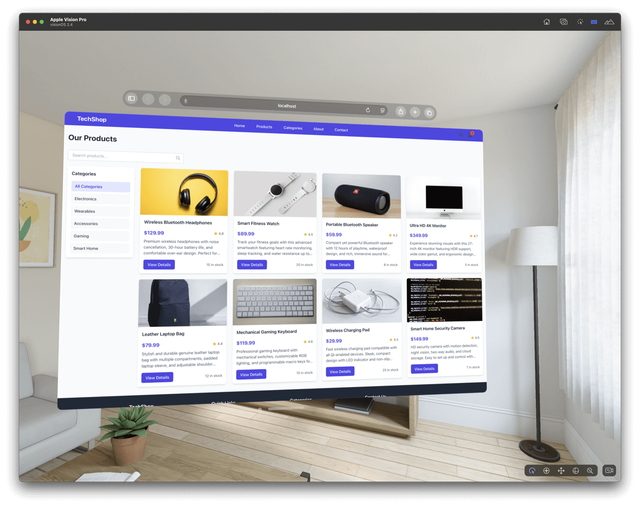

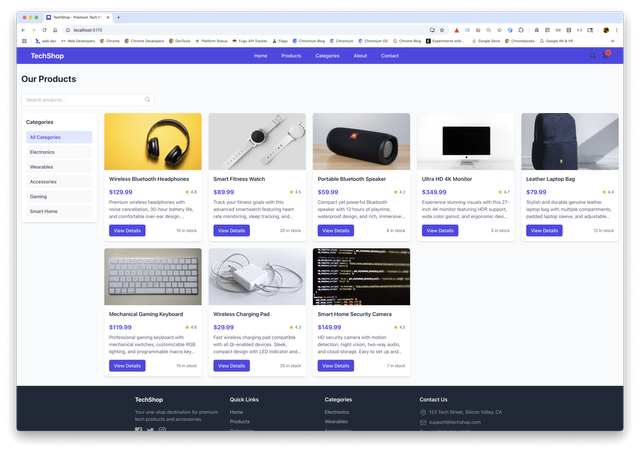

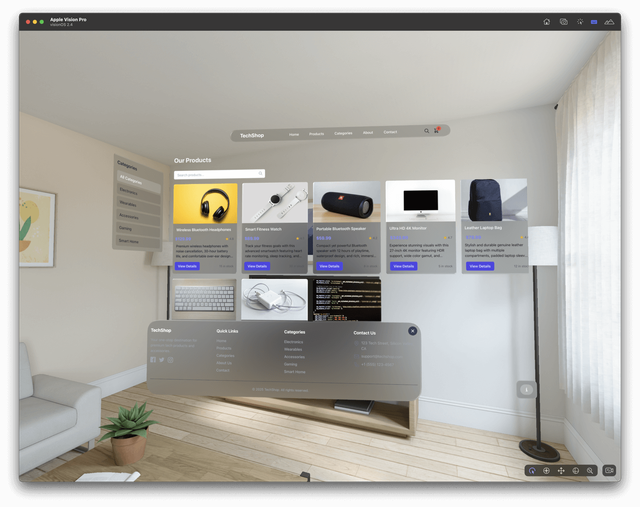

The screenshots below show how this sample project looks on different platforms. Only the last screenshot runs as a Packaged WebSpatial App on visionOS and activates spatialized UI. All other screenshots show the project running directly in regular browsers that do not support the WebSpatial API (including Safari on visionOS).

Large Screen

Tablet

Small Window

Phone

visionOS Safari

WebSpatial
